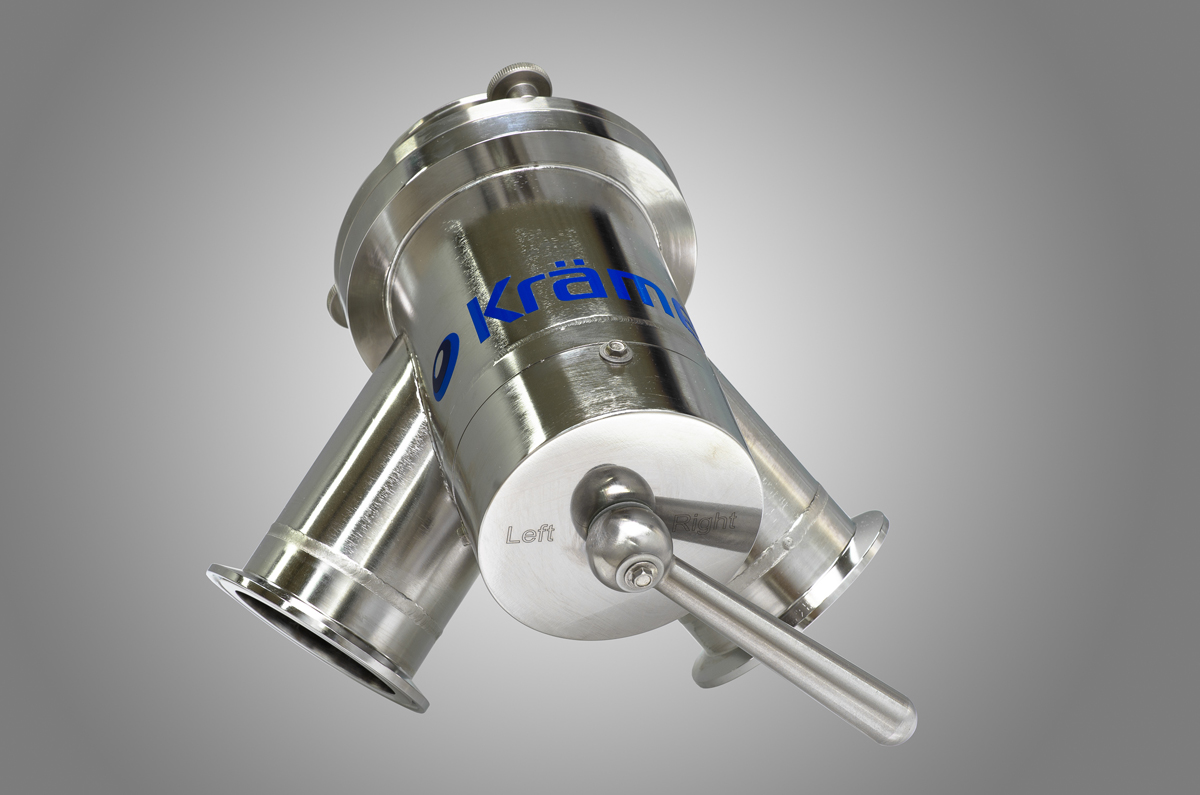

Diverter for simple solutions
KV2010
Manual 2-way diverter used for continuous filling of containers with tablets or capsules.
- Available as DT (dust-tight) and WIP (Wash-in-Place) version
- Manually processed filling of two batches, alternating
- Compatible with deduster models KD7010, KD7015, KD7030, KD7035, KCP10 and KCP15
- Classification: Atex Zone II 2D/- Db 140 °C
- Certification: OEB5 (<1 μg/m³) acc. SMEPAC
Diverter Outlet
2
Control
Manual
Specifications
Number of outlets
2
Drive unit technology
Operation by hand
Product contacting parts
AISI 316L, HMPU7
Weight
4.2 kg
Water consumption
Ø6/4mm, 16 l/min (p=2 bar)
Product inlet
DIN 50, 2", 2.5", 3" tri-clamp
Product outlet
ISO DN 50 tri-clamp
Processing of tablets (var. forms ) Ø3-35 mm
Processing of mini/micro-tablets Ø1.5-3 mm
Processing of effervescent tablets Ø25-35 mm
Processing of capsules Nr. 4-00
Conveying speed mini/micro-tablets <Ø2.5 mm
10'300'000 tabs/h
Conveying speed tablet Ø5 mm
6'300'000 tabs/h
Conveying speed tablet Ø13 mm
574'000 tabs/h
Conveying speed tablet Ø20 mm
240'000 tabs/h
Conveying speed tablet Ø25 mm
95'000 tabs/h
Conveying speed tablet Oblong 16.3 x 7.6 x 5.7 mm
770'000 tabs/h
Conveying speed capsule size Nr. 4
300'000 caps/h
Conveying speed capsule size Nr. 3
300'000 caps/h
Conveying speed capsule size Nr. 2
300'000 caps/h
Conveying speed capsule size Nr. 1
300'000 caps/h
Conveying speed capsule size Nr. 0
300'000 caps/h
Conveying speed capsule size Nr. 00
250'000 caps/h
Explosion protection ATEX 94/9/EG
II 2D/- Db 140 °C
OEL Level acc. SMEPAC
OEB 5
cGMP compliance
CE compliance
Option inlet adapter
Option outlet adapter
Option mini/micro-tablets
Option WIP manual/auto
Option filling level sensors
Option validation documentation
Option material certificates
